Cold warehouse Q345B steel 5 layers pallet shuttle racking systems
Stored processes and solutions have become a strategic element of supply chain management in the enterprise, creating new value for the enterprise.
In addition, the integration of automation systems directly affects the productivity of the organization, reducing costs in the supply chain and improving service
Reduced labor hours, increased storage capacity, and significantly increased productivity when using dense shuttle shelving systems.
Huichen Storage Equipment has professionally experienced in the design and manufacturing different storage system and installation for more over 15 years, especially in the shuttle shelving system.

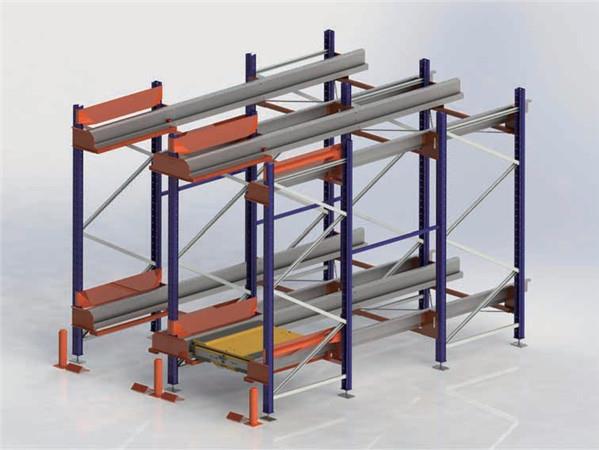

The Pallet Shuttle Racking is a high density intelligent storage system, which is made up of goods racking,shuttle cart, wireless remote control and forklift trucks. It has the following characteristics: high utilization rate,high efficiency and high safety factor. Shuttle racking work is received by the shuttle cart remote control instructions,in accordance with their own procedures for the completion of the warehousing, cargo sorting, inventory and other work. Compared to other types of shelving,radio shuttle racking greatly reduce the human, material and financial resources, to bring customers a new storage options!

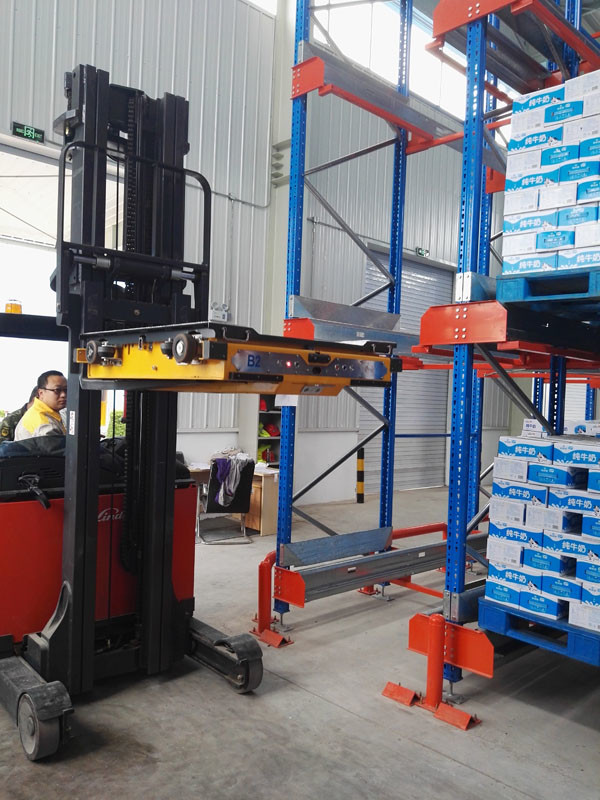

Shuttle Shelving is a great option for high density storage if you have large volumes of pallets. Lanes of up to 50 pallets in depth can be stored in both a First In, First Out (FIFO) and First In, Last Out (FILO) configuration. The remote-controlled shuttles carry goods in and out of deep storage tunnels, leaving your operators free to perform other tasks.

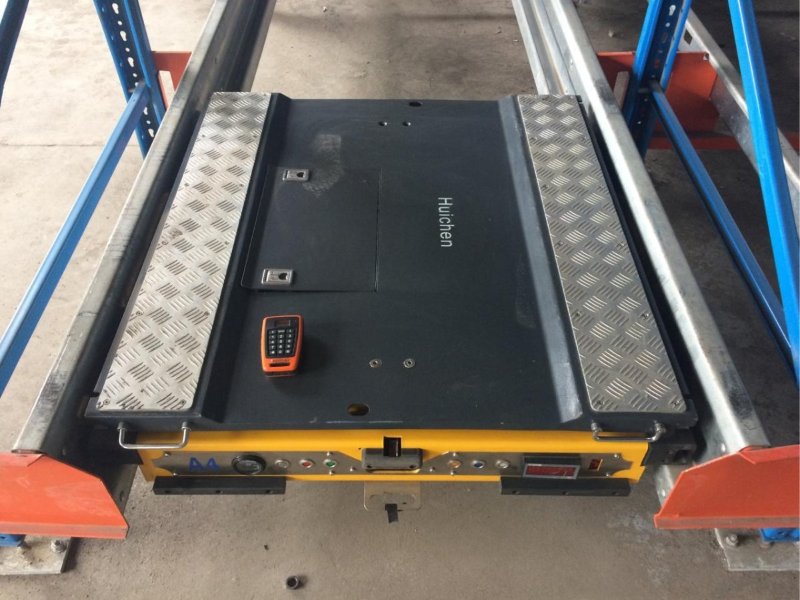

Specification of the radio shuttle cart:
| Specification | Rate loading | Depth | Width |
| HCCS-12-12-15 | 1500kg | 1200mm | 1200mm |
| HCCS-11-11-10 | 1000kg | 1100mm | 1100mm |
| HCCS-14-12-15 | 1500kg | 1400mm | 1200mm |
| HCCS-12-10-10 | 1000kg | 1300mm | 1000mm |
| HCCS-13-11-15 | 1500kg | 1300mm | 1100mm |
Hereinafter data sheet is based on the size of pallet 1200mm
| Serial | Tech data | Size(mm) |
| A | Pallet width | 1200 |
| B | Upright inside size | 1360 |
| C | Shuttle cart rail | 1010 |
| D | Upright size | 90/100/110/120 |
| E | Bottom height | 420 |
| F | Height | based on the fact |
| G | Min height between cargo and pallet | 375 |
Product feature and application of the radio shuttle racking:
Radio Shuttle shelving is particularly well-suited to:
※ Storing of a large number of pallets.
※ Either FIFO or LIFO storage.
※ Warehouses with limited human resources, as the shuttle does a big portion of the work.
※ Ensuring efficient retrieval times, as the FLT travel distance is reduced.
Benefits
※ High density storage
※ Maintain accessibility
※ Increase productivity
※ Minimize damage
Application:
Food, beverage, chemical, tobacco and other single species, large quantities and relatively single item product.
Date critical cargo such as fruit and food can also be stored.
